A wire rope is a spiral steel wire tow that twists together wires with mechanical properties and geometric dimensions according to certain rules. The wire rope is composed of steel wire, rope core and grease. A wire rope is a spiral rope that is first twisted from multiple layers of steel wire, and then twisted into a spiral shape with the rope core as the center. In material handling machinery, it is used for lifting, pulling, pulling and bearing. The wire rope has a high strength, light weight, stable work, and is not easy to break suddenly, and the work is reliable.

choose:

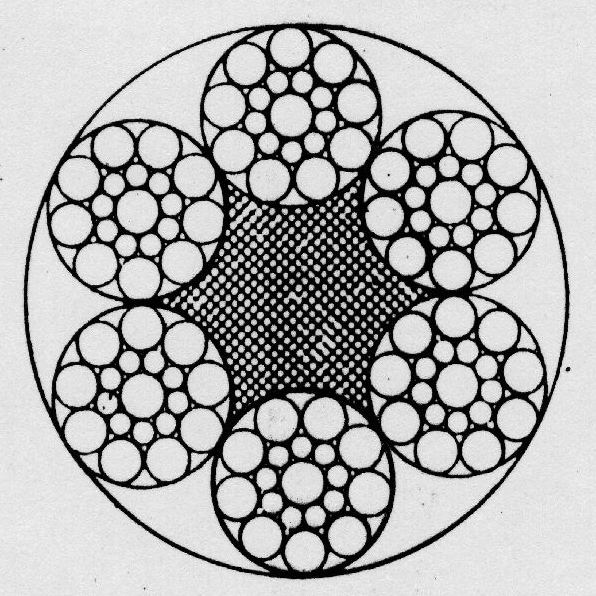

(1) No special requirements, 6x19 strands (1+6+12) fiber core wire rope is used for underground auxiliary transportation winches.

(2) Except for the wire rope opening for surface installation and removal bracket return column winch appropriately to increase the rope diameter, the wire rope selected for winch in other places should not be large to the winch nominal rope diameter

(3) Wire ropes with rope diameters exceeding 18mm must be tested in accordance with the relevant provisions of the "Coal Mine Safety Regulations".

(4) The safety factor of the auxiliary transportation winch when hanging the wire rope shall not be less than 6.5, and the safety factor during operation shall not be less than 6.

fixed:

(1) The winch drum must be equipped with a rope device and must not be tied to the drum shaft. The wire rope must not be less than two pieces and must be securely fixed.

(2) The number of strands of the wire rope shall not be reduced to be fixed. The remaining amount of the rope head after the rope is stuck shall not be greater than 150mm.

(3) The rope holes on the roller must not have sharp edges, and the bending of the wire rope must not form sharp angles.

(4) The lower part of the mother rope on the roller must not be less than 3 loops of rope, but the maximum should not exceed one and a half layers of rope.
